Your garage door motor uses a drive mechanism (chain or belt) connected to a trolley that physically pulls your door up and down the tracks. The motor itself sits above the garage and turns a gear that powers this drive system. So when one part fails, the whole system struggles, and the door can stop halfway or refuse to open.
The motor naturally handles all the heavy lifting, but it only works smoothly when every part functions properly. That’s why we need to ensure proper setup and regular servicing. Fortunately, Doors Direct installs these systems and services them across Brisbane, including quick repairs to full motor replacements.
This guide breaks down exactly how garage door motors move your door, what components power the system, and how to pick the right opener for your home. You’ll also learn which drive mechanism suits your needs and why regular servicing keeps everything running quietly for many years.
What Makes Your Garage Door Motor Actually Move?
The motor spins a gear that moves a chain or belt, which then pulls a trolley carriage attached to your door.
The opener relies on three main parts working together: the trolley and rail system, the drive mechanism (chain or belt), and the motor with its control system. These parts handle movement, power transfer, and control during each cycle.
Here’s how each part works during operation:
The Trolley and Rail System
The trolley connects your automatic garage door to the opener rail and slides along it when the motor activates. This metal carriage (it’s basically a heavy-duty arm connector) locks onto the door arm, pulling or pushing the door up and down the tracks. Since the trolley carries the load during each cycle, any issue here stops movement completely.
For example, a jammed trolley can leave your door stuck halfway or fully closed. And dirt buildup or bent rails often block its movement by preventing the system from working.
Chain Drive vs Belt Drive Mechanisms
Chain drives generally use a metal chain looped around gears, similar to how a bicycle transfers power to the wheels. In comparison, belt drives replace the chain with a rubber belt for soundless operation.
Both systems pull the trolley along the rail during daily use. However, the difference between the two drives comes down to cost and durability. For instance, chains need regular servicing to prevent grinding, while belts require occasional tension checks.
How the Motor Engages with Your Door

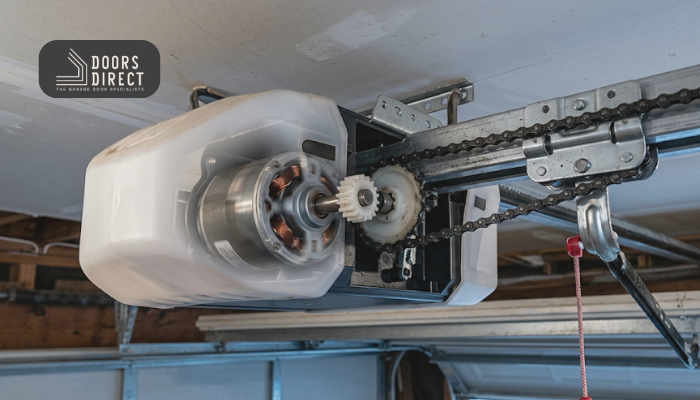

The motor turns a gear that moves the chain or belt along the rail above your garage. This movement allows the trolley to pull the door upward until it fully opens.
Once the motor’s doing its job pulling the door up, limit switches tell it when to reverse or stop so your door doesn’t overtravel.

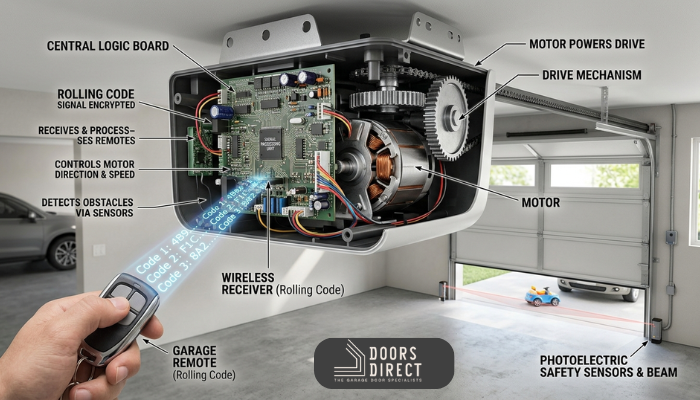

Inside the Opener: Components That Power Automatic Garage Doors
Automatic openers can easily handle everything from wireless signals to safety checks without you lifting a finger. It’s because several components work together here to make your garage door respond and protect your family.
Let’s have a closer look at the parts inside the opener and how they work together:
Remote Controls and Wireless Technology
Your remote sends a signal to the garage door opener receiver, which activates the motor. To do this more efficiently, modern automatic openers use rolling code technology that changes the signal every time you press the button. We’ve seen older remotes fail because they didn’t have this protection.
That technology also prevents someone from copying your remote signal and opening your door without permission. As a result, the rolling code brings proper security to Australian homes.
Safety Sensors That Stop the Door
When you need to stop the door, two photoelectric sensors near the floor on each side of the sectional garage door create an invisible beam across the opening. The system uses that beam to detect obstacles. If something breaks the beam while closing, the motor will reverse immediately to prevent injury.
Also, these sensors check the path dozens of times per second. And the process happens so quickly, you won’t even notice it until it stops an accident.
The Circuit Board Running the Show
The logic board processes signals from remote controls, wall buttons, and safety sensors. Think of it like your phone’s processor, but for garage doors. It can control motor direction, speed, and when to stop based on limit switch positions.
Sometimes, a faulty circuit board can cause random opening, failure to respond, or a complete system shutdown. When it happens, the system usually needs repair or replacement.
Why Quiet Operation is Significant in Modern Door Openers
Quiet operation keeps your household peaceful, especially when someone leaves early or arrives home late at night. After all, the noise level from your garage door opener may affect both your family’s comfort and your neighbours’ peace.
In general, two factors determine how much sound your opener makes during every cycle:
Belt-Driven Systems for Minimal Noise
Belt drive openers use a reinforced rubber belt that absorbs vibration instead of transferring it through metal components. These systems work well for homes with bedrooms above or next to the garage, where sound travels easily (especially if your teenager comes home at midnight).
However, the disadvantage here is a higher price and slightly more frequent belt replacement over time. Even so, many Australian homeowners choose belt systems for the quiet convenience they bring to daily life.
When Regular Servicing Reduces Sound Issues
In our experience, regular servicing every six months keeps metal parts from grinding and creating excess friction in your garage door system. Almost in every case, we’ve found that loose hardware like bolts and brackets is the common culprit for rattling when the door moves.
To prevent this vibration from spreading to walls and ceilings, you should tighten the motor mount and check the rail alignment.
Bottom line: A well-maintained opener will always run smoothly for many years without disturbing your house at night.
Choosing Between New Garage Door Opener Models
What’s the largest factor when picking a new opener for your home? Well, the right opener selection often comes down to your door type, weight, and the features you need.
Before choosing, check out what counts the most:
| Feature | Why It’s Significant |
| Horsepower (1/2 HP to 3/4 HP) | Single doors need less power than heavy sectional garage doors |
| Wi-Fi Connectivity | Check door status remotely |
| Battery Backup | Keeps the door operational during power outages |
When comparing new garage door openers, you should learn about different brands to verify the right opener for your door. Many companies like Doors Direct typically work with established brands such as Merlin that offer motors designed for different door types (roller door, sectional door, tilt).
Speaking about the features, Wi-Fi models let you check remotely by protecting your belongings. Besides, battery backup prevents you from getting stuck outside during storms (Brisbane storms can knock power out without warning).
At the same time, prices often vary depending on these features and installation service, but quality automatic openers save on future repair costs across Australia.
Keep Your Automatic Opener Running Smoothly
Your garage door motor handles the heavy lifting every single day, moving your door up and down without you thinking twice about it. When you learn how the opener works, you can spot problems early and avoid major repair costs.
Regular service keeps your automatic garage door running quietly and reliably for many years. But small issues like loose hardware or dirty sensors can become huge problems if you ignore them. So don’t wait until your door gets stuck to call for help.
